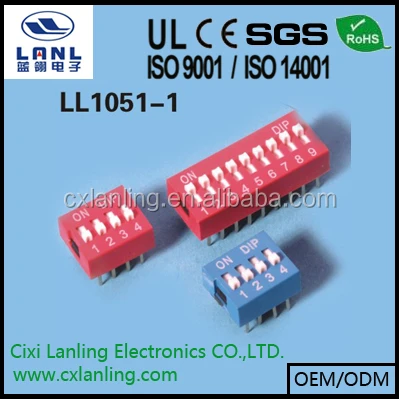

2.54mm standard type BP/BS series 8 pin dip switch

FOB Reference Price:Get Latest Price
$0.03 - $0.29 / Piece | 100 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Model Number:
LL1051-1
Application:
PCB
Type:
dip switch, 8 pin dip switch
Mounting type:
None:Regular P:Piano type
Color:
Red,Blue,Black
Contact plated:
Gold plated
Position:
1-12
Contact:
Phosphor Bronze
Current rating:
1 AMP
Brand Name:
LANLING
Gender:
Female
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package for 8 pin dip switch
Port
ningbo or shanghai
Lead Time :
7-10days for 8 pin dip switch







Product Description

8 pin dip switch



We are manufacture of:



Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.



Application



They are widely used in household applicances,electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instument,etc.



Shipment



Ship worldwide by sea,air,DHL,UPS,TNT,FEDEX,China post air mail and s on.

We will fully respect your choice about delivery way.





DIP SWITCH

Features:

Insulation resistance:

1000MΩ min,at DC 500V.



Contact resistance:

30mΩ max,at DC 100mA.

Current Rating:

1 AMP.

Dielectric withstanding:

Voltage:

AC 500V For 1 minute.

Operating temperature:

-55°C-85°C.

Contact:

Phosphor Bronze

Housing:

PBT & 30% Glass Fiber(UL 94V-0)
