2.54mm IDC connector 6 8 10 12 14 16 18 20 22 24 26 30 34 40 44 50 60 68 pin CE ROHS LL1033-1

FOB Reference Price:Get Latest Price
$0.02 - $0.20 / Piece | 200 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Model Number:
LL1033-1
Application:
PCB
Type:
IDC SOCKET, 2.54mm idc connector
No. of Contacts:
6 8 10 12 14 16 20 24 26 30 34 40 50 60 64
Strain Relief:
M:w/,N:w/o
Poiarization:
A:w/,B:w/o
Contact Plating:
Gold flash(Please contact us for other plating thinckness)
Terminal Material:
B:Brass
Housing Colour:
Black,Grey,Blue
Connector:
2.54mm idc connector
Brand Name:
LANLING
Gender:
Female
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package for 2.54mm idc connector
Port
ningbo or shanghai
Lead Time :
15-30days for 2.54mm idc connector







Product Description

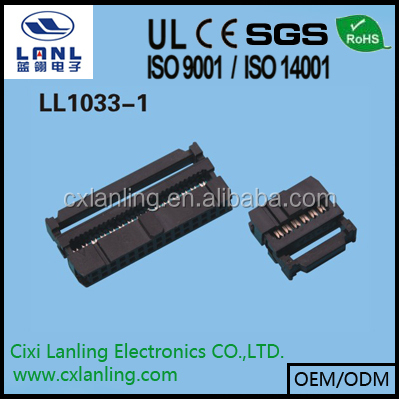

LL1033-1 2.54mm idc connector



We are manufacture of:



Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc

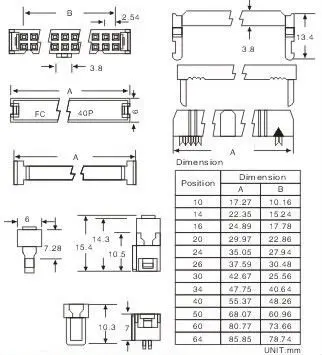

2.54mm idc connector

Material:

Insulator:

thermoplastic(ul 94v-0).

Contact:

copper alloy.

Contact plated:

see ordering information.

Specification:

Storage Temperature:-

-20-70°C.

Operating temperature:

0-85°C.

Contact resistance:

20mΩMax.(initial).

Insulation resistance:

1000mΩ Min.

Dielectric withstanding voltage:

AC 1000V.
