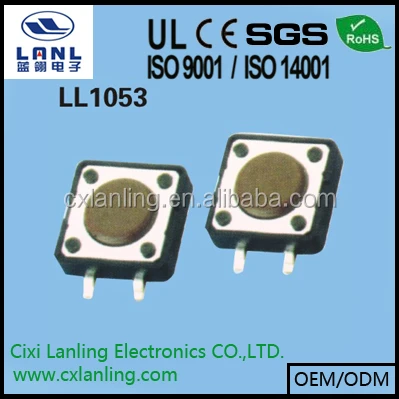

TACT SWITCH SMT TYPE 12MM*12MM

FOB Reference Price:Get Latest Price
$0.01 - $0.80 / Piece | 100 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
LANLING
Model Number:
LL1053
Protection Level:
IP67
Max. Current:
50mA
Max. Voltage:
250V
Color::
Red,Blue,Black
Application::
PCB
Gender::
Female
Connector::
tact switch
Acuator::
blue.70gf,black.100gf,brown.160gf,red.260gf,salmon.320,yellow.520gf
size::
12mm*12mm
Max. Voltage::
12V
Type:
DIP SWITCH/ TACT SWITCH
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package or as per customer's reqeust
Port
Ningbo or Shanghai
Lead Time :
1-15days

12mm*12mm  tact switch





We are manufacture of:



Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.



Advantage
1.We are professional supplier.
2.We have its own factorie to ensure competitive prices.
3.Inspections:100%test before delivery.
4.Free samples for your test
5.Fast delivery
7.trail order&small order are acceptable

 products specifications





TACT SWITCH DIP TYPE

Specifications:

Switch function:

Single pole Single throw.

Contact plating:

50mA@12vdc.

Insulation resistance:

100mΩmin@500vdc.

Contact resistance:

100mΩmax.

Operating life:

10000 cycles.

Operating force:

See below.

Material:

Stop strength:

place the swith such that vertical,a static load of 3kgf shall be applied in the    direction of stem,operation for a period of 15 secs.

Stroke:

(6*6)0.25(+0.2mm or -0.1mm)(12*12)0.35+/-0.1mm.

Operation temperature range:

-25°C to 70°C..

Storage temperature range:

mil-std-202f method 201a.

Shocktest:

to mil-std-202F,method 213B,condition A.

Wave soldering:

recommended solder temperature at 500f (260°C)max,5 seconds,subject to pcb   1.6mm thickness.

Hand soldering:

usea soldering iron of 30 watts,controlled at 608f(320°C)approximately 2 seconds while applying soldering.





pictures

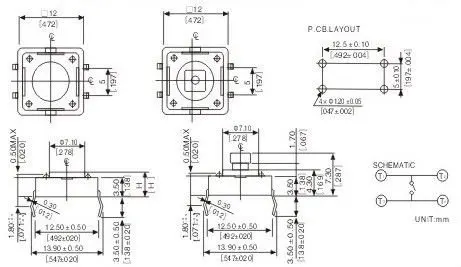

drawing
